螺丝自动供给系列

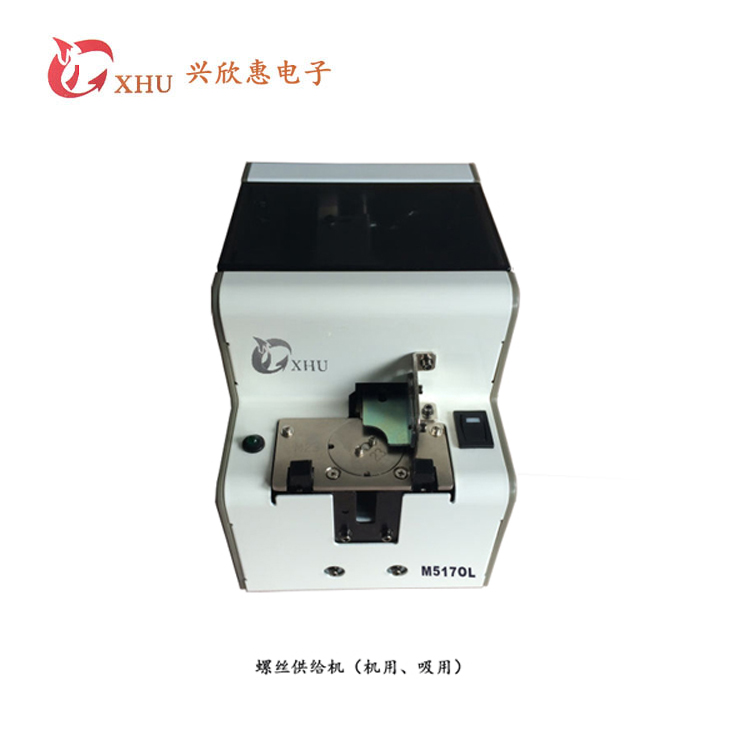

M517L螺丝供给机（机用、吸用）

产品型号：XHU/兴欣惠
产品品牌：M517L
供货信息：
产品概述:旋转式圆盘将成排的螺丝分成单颗供给，消除了螺丝重叠的现象，从而实现稳定的装夹。产品说明1、定的圆头螺丝，带垫片螺丝、薄头螺丝均可顺畅地拾取;2、取螺丝口，无震动，拾取螺丝稳定且快速；3、螺丝供给采用旋

旋转式圆盘将成排的螺丝分成单颗供给，消除了螺丝重叠的现象，从而实现稳定的装夹。


产品说明

1、定的圆头螺丝，带垫片螺丝、薄头螺丝均可顺畅地拾取;

2、取螺丝口，无震动，拾取螺丝稳定且快速；

3、螺丝供给采用旋转式分料比直线往返式，缩短了回原点时间，提高了螺丝的供给速度；

4、分料时，若有阻碍，会自动回原点，保证拾取位置的准确性；

5、提供外接信号线，自动化设备可根据该信号线知道拾取位是否有螺丝。

参数：

Automatic Screw Feeder（For Automatic Robot）

The screws are separated into singer one, they are hard to pile, so it is more stable to work.

Product description

1, The round head screws, gasket screws, thin head screws can be used;

2, Extracting the screws with no vibration, pick up the screw stability and fast;

3,Supplying screw rotary, reduce time to back to the original point, increase supplying speed;

4,Automatically returning to the original point, ensure the accuracy of extracting location;

5, Providing external signal, so automation equipment knows whether there is a screw in the extracting location.

Feature

Mode		NSRI
Power	IN	AC100V-240V(50/60HZ）
	OUT	DC15V 1A
Size（mm）		123(W)×181(D)×145(H)
Protecting Circuit		Stop or reverse when overloading
Weight（Kg）		3Kg
Capacity		80cc
